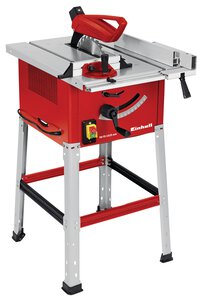

(The image may differ from original product.)
Table Saw
TH-TS 1525 eco
Articlenumber: 4340785
EAN - number: 4006825589931
Brand: Einhell Classic
Please note that you must first select your ID number above to see the list view and exploded drawing of your product. You can find your identification number on the nameplate next to the article number or in your operating instructions.
Spareparts for TH-TS 1525 eco displayed via list view or via explosion drawing
Sparepart overview
Explosiondrawing
Instructions and data sheets for TH-TS 1525 eco
Not able to find operating instructions for your tool? No worries: all our manuals and documents are also available online - it takes just a mouse click to download them.
Instructions and data sheets for TH-TS 1525 eco
Not able to find operating instructions for your tool? No worries: all our manuals and documents are also available online - it takes just a mouse click to download them.
Specifications
Facts, figures and information for Table Saw TH-TS 1525 eco: here you will find detailed technical data, as well as specific information on dimensions, weight and packaging of this iSC product.
| Technical info | |
|---|---|
| Mains supply | 230 V | 50 Hz |
| Power | 1200 W |
| Max. power (S6 | S6%) | 1500 W | 40 % |
| Idle speed | 5700 min^-1 |
| Saw blade | 250 mm x 30 mm |
| Swiveling range of saw blade | 45 ° |
| Max. cutting height at 45° | 48 mm |
| Max. cutting height at 90° | 75 mm |
| Height adjustment continuous | 0-75 mm |
| Diameter of suction adapter | 36 mm |
| Working height | 850 mm |
| Size of working table | 640 mm x 446 mm |
