(The image may differ from original product.)
Table Saw
RT-TS 1221
Articlenumber: 4340741
EAN - number: 4006825541250
Brand: Einhell Red
Please note that you must first select your ID number above to see the list view and exploded drawing of your product. You can find your identification number on the nameplate next to the article number or in your operating instructions.
Spareparts for RT-TS 1221 displayed via list view or via explosion drawing
Sparepart overview

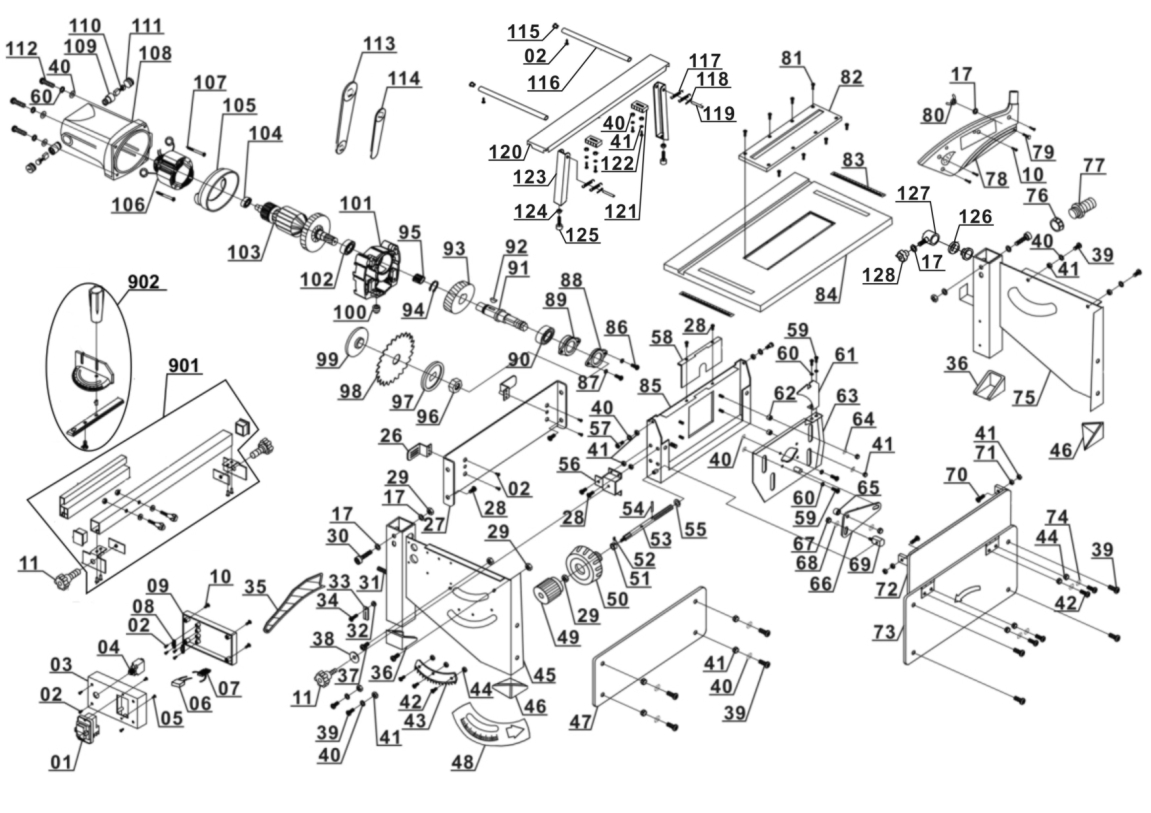

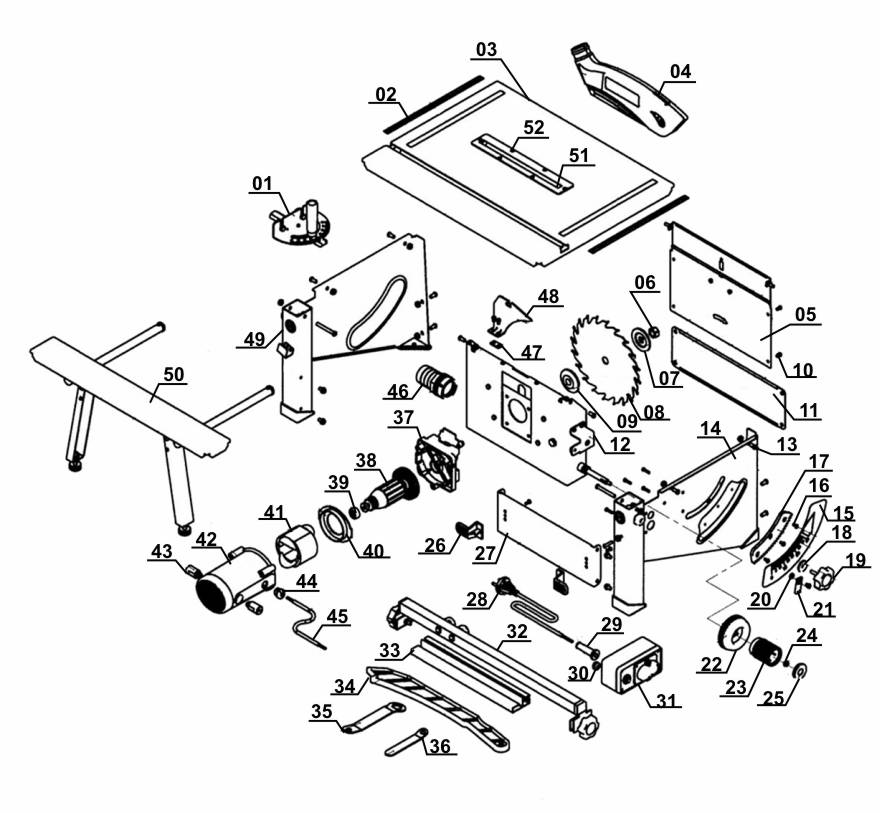

Explosiondrawing
Instructions and data sheets for RT-TS 1221
Not able to find operating instructions for your tool? No worries: all our manuals and documents are also available online - it takes just a mouse click to download them.
Instructions and data sheets for RT-TS 1221
Not able to find operating instructions for your tool? No worries: all our manuals and documents are also available online - it takes just a mouse click to download them.
Suitable accessories for RT-TS 1221
Specifications
Facts, figures and information for Table Saw RT-TS 1221: here you will find detailed technical data, as well as specific information on dimensions, weight and packaging of this iSC product.
| Technical info | |
|---|---|
| Mains supply | 230-240 V | 50 Hz |
| Power | 1200 W |
| Idle speed | 4800 min^-1 |

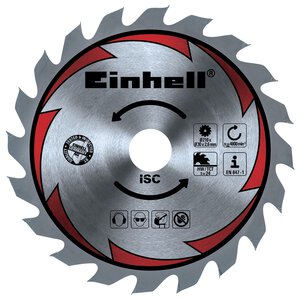

| Saw blade | 210 mm x 30 mm |
| Swiveling range of saw blade | 45 ° |
| Max. cutting height at 45° | 45 mm |
| Max. cutting height at 90° | 48 mm |
| Height adjustment continuous | 48 mm |
| Diameter of suction adapter | 36 mm |
| Size of working table | 525 mm x 400 mm |
| Table broadening left | 525 mm x 70 mm |
Images
