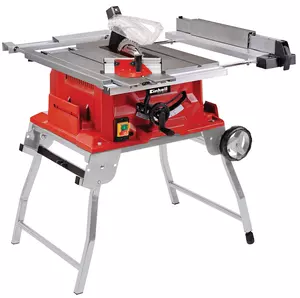

Table Saw
TE-CC 2025 UF/S; EX; UK; CH
Articlenumber: 4340548
EAN - number: 4006825626773
Brand: Einhell Expert
Instructions and data sheets for TE-CC 2025 UF/S; EX; UK; CH
Not able to find operating instructions for your tool? No worries: all our manuals and documents are also available online - it takes just a mouse click to download them.
Specifications
Facts, figures and information for Table Saw TE-CC 2025 UF/S; EX; UK; CH: here you will find detailed technical data, as well as specific information on dimensions, weight and packaging of this iSC product.
| Technical info | |
|---|---|
| Mains supply | 220-240 V | 50 Hz |
| Power | 1500 W |
| Max. power (S6 | S6%) | 2000 W | 20 % |
| Idle speed | 4500 min^-1 |
| Saw blade | 250 mm x 30 mm |
| Swiveling range of saw blade | 45 ° |
| Max. cutting height at 45° | 53 mm |
| Max. cutting height at 90° | 78 mm |
| Height adjustment continuous | 0-78 mm |
| Diameter of suction adapter | 36 mm |
| Working height | 850 mm |
| Size of working table | 645 mm x 530 mm |
| Table broadening right | 645 mm x 150 mm |
| Table length extension back side | 530 mm x 65 mm |
