Table Saw
Articlenumber: 4340531
EAN - number: 4006825626780
Brand: Einhell Classic
Instructions and data sheets for TC-TS 2025/1 ECO; EX; ARG
Not able to find operating instructions for your tool? No worries: all our manuals and documents are also available online - it takes just a mouse click to download them.
Specifications
Facts, figures and information for Table Saw TC-TS 2025/1 ECO; EX; ARG: here you will find detailed technical data, as well as specific information on dimensions, weight and packaging of this iSC product.
Technical info | |
---|---|
Mains supply | 230 V | 50 Hz |
Power | 1800 W |
Max. power (S6 | S6%) | 2000 W | 25 % |
Idle speed | 5000 min^-1 |
Saw blade | 250 mm x 30 mm |
Number of saw teeth | 24 Pieces |

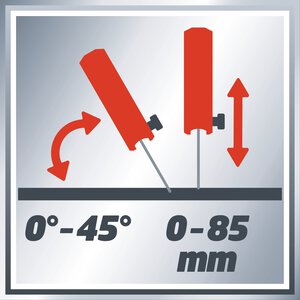

Swiveling range of saw blade | 45 ° |
Max. cutting height at 45° | 65 mm |
Max. cutting height at 90° | 85 mm |

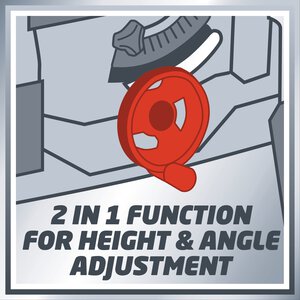

Height adjustment continuous | 0-85 mm |
Diameter of suction adapter | 36 mm |
Working height | 850 mm |
Size of working table | 640 mm x 487 mm |
