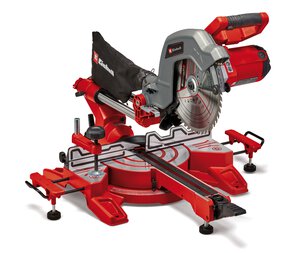

(The image may differ from original product.)
Sliding Mitre Saw
TC-SM 254
Articlenumber: 4300385
EAN - number: 4006825635713
Brand: Einhell Classic
Please note that you must first select your ID number above to see the list view and exploded drawing of your product. You can find your identification number on the nameplate next to the article number or in your operating instructions.
Spareparts for TC-SM 254 displayed via list view or via explosion drawing
Sparepart overview
Explosiondrawing
Instructions and data sheets for TC-SM 254
Not able to find operating instructions for your tool? No worries: all our manuals and documents are also available online - it takes just a mouse click to download them.
Instructions and data sheets for TC-SM 254
Not able to find operating instructions for your tool? No worries: all our manuals and documents are also available online - it takes just a mouse click to download them.
Specifications
Facts, figures and information for Sliding Mitre Saw TC-SM 254: here you will find detailed technical data, as well as specific information on dimensions, weight and packaging of this iSC product.
| Technical info | |
|---|---|
| Mains supply | 220-240 V | 50 Hz |
| Power | 1800 W |
| Number of saw teeth | 48 Pieces |
| Max. power (S6 | S6%) | 1900 W | 25 % |
| Idle speed | 5000 min^-1 |
| Saw blade | 254 mm x 30 mm |
| Mitre cut | 45 ° - 0 ° |
| Swiveling range | 47 ° - 47 ° |
| Cutting capacity 90° x 90° | 305 mm x 85 mm |
| Cutting capacity 90° x 45° | 215 mm x 85 mm |
| Cutting capacity 45° x 90° | 305 mm x 45 mm |
| Cutting capacity 45° x 45° | 215 mm x 45 mm |
| Diameter of suction adapter | 36 mm |
| Length | 785 mm |
| Width | 505 mm |
| Height | 420 mm |
